Definition

Electrolytic polishing (short for electropolishing, EP) is a precision electrochemical metal surface finishing process, regarded as the reverse reaction of electroplating.

The metal workpiece acts as the anode submerged in special acid electrolyte; controlled direct current triggers selective anodic dissolution. Microscopic protrusions on the metal surface dissolve preferentially to level roughness, remove micro burrs and create mirror-bright, ultra-clean metal surfaces without mechanical abrasion or extra coating layers.

It applies to conductive metals: stainless steel, aluminum, titanium, copper, brass and nickel alloys.

Core Working Mechanism

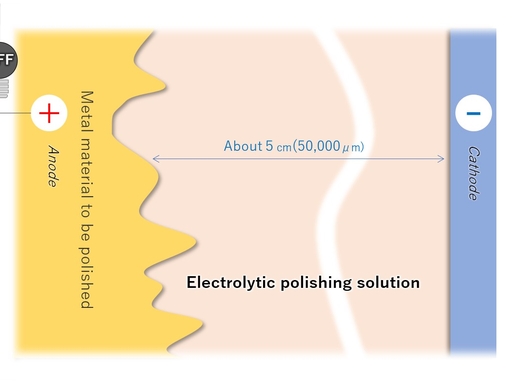

1. Connect the workpiece to DC positive terminal (anode), inert metal plate as cathode inside electrolyte tank.

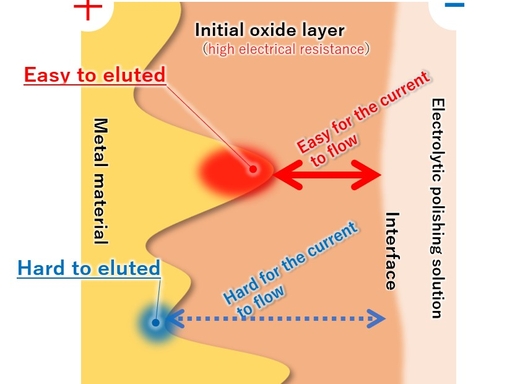

2. After power-on, a high-resistance viscous ion film forms uniformly on the metal surface.
3. The viscous film is thinner on surface peaks and thicker in surface valleys.
4. Current density concentrates on thin-film convex areas, accelerating metal ion dissolution; recessed zones with thick film bear low current and barely dissolve.
5. Continuous differential dissolution gradually eliminates micro peaks, leveling scratches, tool marks and burrs to achieve smooth mirror finish.
6. For stainless steel, EP simultaneously generates a dense, uniform chromium-rich passive film to boost corrosion resistance.

Standard Process Flow

1. Degreasing & Ultrasonic Cleaning Remove cutting oil, fingerprints, grinding debris to avoid surface defects.
2. Rinsing Multi-stage flowing water wash to eliminate alkaline cleaner residues.
3. Electrolytic Polishing (Core Step) Immerse parts in matched electrolyte under fixed voltage, temperature and time; remove 0.5–5 μm thin metal layer from surface.
4. Neutralization & Pickling Neutralize residual strong acid electrolyte to prevent post-treatment corrosion.
5. Final Rinsing (Hot + Cold Water) Fully flush chemical residues from tiny surface pores.
6. Drying Hot air dehydration to avoid water spots.

Key Advantages of Electropolishing

1. Perfect Surface Leveling & Mirror Gloss Eliminates micro burrs, grinding scratches and uneven texture; reduces surface roughness by 1–2 grades, reaching Ra 0.01–0.2 μm mirror effect.
2. No Mechanical Stress & Deformed Layer Unlike mechanical buffing, EP generates no compression stress, metal flow or surface metamorphic layer; ideal for thin-walled, precision and fragile components.
3. Polishes Complex & Hard-to-Reach Geometry Electric field penetrates deep holes, narrow gaps, internal pipes and intricate cavities that grinding wheels/polishing cloths cannot access. Batch processing is available for high efficiency.
4. Ultra-Clean & Anti-Bacterial Surface Smooth non-porous surface minimizes particle adhesion, bacteria growth and fluid residue; meets strict hygiene standards for medical and food equipment.
5. Enhanced Natural Corrosion Resistance Especially for stainless steel: EP forms uniform chromium oxide passive film without mechanical damage, greatly improving rust resistance in humid or saline environments.
6. Stable Dimensional Control Only a tiny metal layer is removed; dimensional tolerance loss is predictable and controllable for precision CNC machined parts.
7. Uniform Finish on All Surfaces Consistent brightness on edges, inner walls and curved surfaces without uneven polishing marks.

Limitations & Disadvantages

1. Material Specific Electrolyte Required Different alloys (304/316 stainless steel, aluminum, titanium) demand exclusive polishing solutions; poor versatility across all metals.
2. Edge Rounding Risk Sharp corners and thin edges dissolve faster, causing slight chamfering; unsuitable for parts requiring strict sharp edge tolerance.
3. High Chemical & Equipment Cost Polishing electrolyte contains concentrated strong acids with strict safety and waste treatment requirements.
4. Cannot Remove Deep Defects Deep scratches, pits and heavy oxidation layers need pre-grinding before EP treatment.
5. Limited Material Removal Capacity Only thin surface material can be stripped; not applicable for heavy stock removal.

Main Industrial Applications

• Medical Devices: Surgical instruments, implant accessories, hypodermic needles, sanitary tube fittings (hygienic, anti-corrosion, non-toxic)
• Food & Beverage Equipment: Stainless steel pipelines, mixing tanks, valves, food processing molds (easy sanitization, no residue buildup)
• Aerospace & Precision Hardware: Titanium alloy structural parts, hydraulic components, ultra-precision CNC parts
• Semiconductor & Vacuum Equipment: Vacuum chambers, fluid manifolds, gas pipelines (ultra-clean, low particle emission)
• Daily Hardware & Decoration: Stainless steel tableware, watch parts, decorative mirror metal trim
• Metallographic Specimen Preparation: Stress-free surface for accurate microscopic microstructure observation

Comparison: Electropolishing vs Mechanical Buffing

表格

Item	Electrolytic Polishing	Mechanical Buffing/Grinding
Surface Stress	Zero residual stress	Severe compression stress & deformed layer
Complex Inner Cavities	Fully accessible	Cannot reach deep holes/narrow gaps
Micro Burr Removal	Complete micro-burr elimination	Residual tiny burrs remain
Hygiene Performance	Ultra-smooth, low bacterial adhesion	Micro grooves trap dirt & bacteria
Corrosion Resistance	Improved passive film on stainless steel	Damages natural passive layer
Edge Condition	Slight edge rounding	Sharp edges retained
Batch Efficiency	High, multiple parts processed together	Low, manual one-by-one operation
